QM2-111 Remote System
Discontinued 2015 and replaced by the Smart-Jet

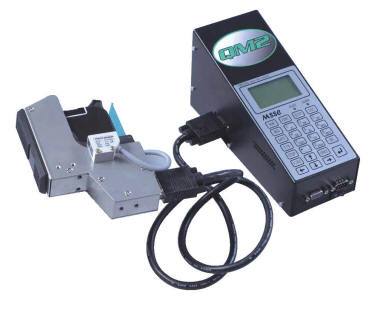

QM2-111 Remote Ink Jet System
The QM2 prints upper and lower case characters, numbers, with an easy to access "cell phone" type keypad, full line or two line format, offers several date formats, Katakana characters using Japanese Font, several special characters, and 2 selectable fonts. Logos are downloadable via RS485.
Components Specifications
Controller
| Printhead Control Capability | 1 Printhead |
| Display | 160 x 80 Pixels, 56 x 30 mm (2.2” x 1.2”) LCD Backlit Monochrome with Auto Switch |
| LED Indicators | Ink-Low Alarm Print On/Off |
| Power Supply | AC 85~240V, 47~63 Hz, Auto-Switch Power Consumption Max. 65 Watts |
| Mounting | 375mm (14.8”) Vertical and 225mm (8.9”) Horizontal Mounting Tubes 18mm (.7”) OD |
| Physical Dimensions | 227mm L X 118mm W X 111mm H 8.96”L X 4.65”W X 4.38” H |
| Weight | Controller/Printhead w/cartridge 2 kgs (4.35 lbs) |
Printhead
| “Plug & Print” Cartridge | Built-In Hewlett-Packard Print Engine |
| Print Directions | Horizontal or Down with 42CC Cartridge Horizontal or Down with 370CC Bulk Ink System Up with 370CC Bulk Ink Systems |
| Print Resolution | 300 DPI (Adjusts to 600 DPI) |
| Print Height | 5 - 13mm (.2” - .5”) |
| Photocell | Adjustable reflex type sensing |
Built-In Software Features:
| Operation Menu: | Digital Menu Driver for quick and easy operation in English, Spanish, French, German, Japanese |
| Printable Images: | Alpha (Upper & Lower Case)/Numeric Characters Select Katakana characters Logos** |
| Software includes: | Dates Codes, Time Codes, Expiration Dates, Counter, Repeat Print, Programmable Print Delay, Adjustable character width and height, Adjustable dot density, 2 Fonts, Programmable Print Direction, Programmable Line Speed |
| Messages: | 30 Characters per Line with full height Using special functions, characters per line may be increased Stores 100 messages |
| Line Speed: | Adjustable up to 60 meters (200 feet)/minute |
| Throw Distance: | 3mm (1/8 inch) between printhead and surface |
**MSSC has developed the QM2 for down-loadable via RS485 connection. At present Logos will need to be sent to MSSC for programming your unit before delivery.
Ink System:
Standard 42 cc cartridges |
Colors: Black, Blue, Red, Green, Yellow |
| Optional 370 cc Bulk Ink System | Black only |
Learn how to maintain your cartridges. Click here for the HP link.
Environmental Conditions:
| Operating Temperature: | 5°C to 40°C (40°F to 105°F) |
| Storage Temperature (ink) | -40°C to 60°C (-40°F to 140°F) |
Factory Warranty:
All Equipment - 12 months (not including consumer items)
All Labor - 90 days
Click here for the Owners Manual.
Description |
SKU # |
|---|---|
180M-QM2101 |
|
180M-QM2101B w/Bulk Ink System |
|
QM2-101-NS No Ink Cartridge Supplied |
180M-QM2101NS Non-Secure |
180M-QM2111 |
|
180M-QM2111B |
|
QM2-111-NS No Ink Cartridge Supplied |
180M-QM2111NS Non-Secure |
180C-55950 |
| Description 42cc | SKU # |
|---|---|
| Black | 180C-55900 |
| Black - 6 Pack Special | 180C-55900B |
| Red | 180C-55901 |
| Red- 6 Pack Special | 180C-55901B |
| Green | 180C-55902 |
| Green - 6 Pack Special | 180C-55902B |
| Blue | 180C-55903 |
| Blue - 6 Pack Special | 180C-55903B |
| Yellow | 180C-55904 |
| Yellow - 6 Pack Special | 180C-55904B |
| Black - VB Premium | 180C-55975 |
| VB Black - 6 Pack Special | 180C-55975B |
