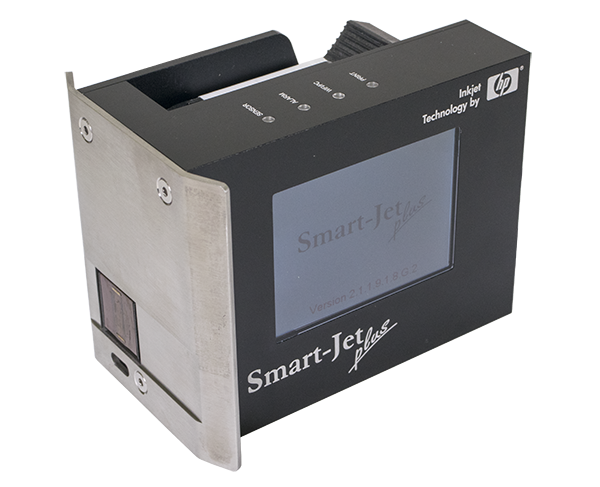

Smart-Jet Plus Ink Jet Printer
MSSC
Fastest Compact Printer Ever!
Simple. Versatile. Prints Up To 6 Lines.
Our new Smart-Jet Plus is the most compact, reliable, and robust inkjet coder for packaging printing on the market! This legendary workhorse prints on both porous and non-porous surfaces and can print bar codes, QR codes and logos. A large display screen makes it incredibly easy – and highly productive – to operate.
Large, auto-rotating color display!
CE Approved
Encoder capability built-in, or optional external eye available.
Features:
- Trusted Hewlett Packard HP45 TIJ 2.5 inkjet technology
- Faster speed, better resolution — 300 dpi @ 150m/min, support up to 600 dpi!
- More characters per line — At least 75 12.7mm @ 300dpi.
- Wi-Fi connection via Android and iOS, smartphones and tablets.
- USB connection for future firmware and font upgrades.
- Built-in photo sensor and Aux port for optional external photo sensor.
- Anti-shock mounting for printer protection.
- Prints on both porous and non-porous surfaces
- No moving parts and maintenance free
- High-resolution characters
- Prints high-quality bar codes, QR codes, logos
- Control up to 10 printers via Wi-Fi with smart phones and tablets using Android and iOS operating systems
- Anti-shock mounting mechanism adjusts to irregularities in box for consistently smooth and high-quality printing results
- PC connectivity with Smart-Jet Plus software
- Dynamic bar codes can create a unique number for each individual product
- Stand-alone operation with wireless USB keyboard or with PC control
Compact and Smart Design
- Dimensions (L x W x H): 4.17 x 2.09 x 3.27 (in) or 106 x 53 x 83 (mm)
- Light Weight: Approximately 1 lb. (excluding cartridge)
- Anti-shock mounting mechanism for printer protection
- Display: Automatic rotation 2.8” 256K colors TFT LCD display
- Power supply: AC 100 - 240V, 50/60 Hz
- Maximum power consumption: 48 watts
- Plug and print with HP 45 ink cartridge (Hewlett Packard TIJ 2.5 inkjet technology)
- Throw Distance: Up to 0.25 in (6 mm)
Standard Features
- AUX I/O port for external photo-sensor, encoder, and/or alarm kit connection
- USB 2.0 port for operating with PC, firmware loading and event log to report operation history
- Nozzle switching and self-cleaning capabilities to extend cartridge lifetime
- Store up to 100 messages on printer’s memory
- Password protected
- Multi-function PC software for synchronized control and message management
- Automatic recognition of inks (aqueous or solvent) and application of appropriate printing parameters
- Hot-swap: Circuit protection for quick cartridge changeover
Printability and speeds
- Menu languages: English (default), Chinese, French, German, Spanish, Finnish, and Portuguese
- Alphanumeric characters, 4 logos, date/time, expiration date, Julian date, shift code, counter/lot box code, multiple types of variable bar codes and database
- Printable characters: Windows true fonts
- Print up to 6 lines from 0.04 - 0.5 in (1 - 12.7 mm)
- Horizontal resolution: 300 dpi @ 75 m/min, 150 dpi @ 150 m/min and 100 dpi @ 230 m/min
- Vertical resolution: 300 dpi
- Up to 5 levels of optic density
Inks and Accessories
- Black water-based ink for porous media (Available in 42 or 370 ml)
- Solvent inks for semi- and non-porous media (Available in black, red, or blue)
- Standard mounting bracketry and hardware included
Operating Temperature
- Operating temperature between 41° F - 122° F (5° C - 50° C)
Warranty
- 12 month warranty for all equipment excluding consumables
