The QM1610 Is The Versatile
Answer For Coding.
One or Two Lines Of Printing. Compact Design.

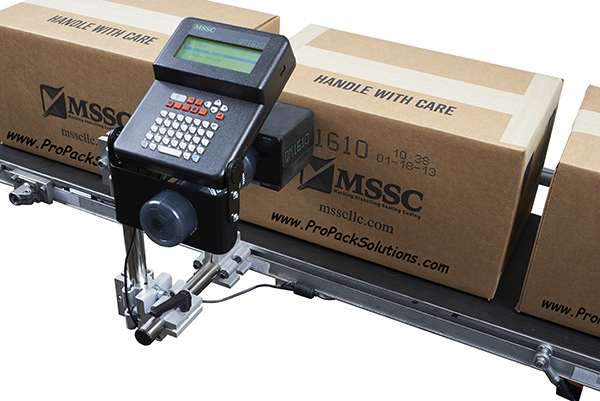

MSSC QM1610 Ink-jet Printers make printing product names, identification numbers, automatic production counts and up-to-the-minute coding fast and easy with just the touch of a button. This versatile performer can print one or two lines of text and is simple to program.
Features:
- Prints one or two lines of text using a variety of selectable languages and printable characters
- Menu-driven programs include electronically accurate automatic date change, clock functions, and consecutive counts
- Marks cartons and provides production information vital for inventory and quality control
- Easy-to-use icon keys allow you to adjust and edit product codes with a few simple keystrokes
- Delivers an all-in-one, low cost solution from high ink mileage to low maintenance requirements
- Hard-working design provides outstanding reliability and unsurpassed performance
- Can be assembled and installed in minutes; simply plug it in and you are ready to print
- Mounted directly to a conveyor, it includes: controller/keypad, print-head, power supply, power cord, mounting brackets and a pressurized ink bottle
System Includes controller/input device, print head, universal power supply, mounting bracketry and a bottle of porous ink.
Built-in Software Features:
- Customized time and date codes
- Rollover hour
- Expiration date for automatic printing
- Shift organizer for automatic coding by particular shifts (up to 4 shifts)
- Print delay for message placement
- Character width adjustment
- Variable speed or fixed speed printing
- Consecutive incremental numbering
Print Heights:
- Standard Print Height: 1" (25mm)
- Optional heights: 0.75" (20mm), 1.25" (32mm), 1.9" (48mm)
Character Fonts:
- 7X5 dot matrix
- 16X10 dot matrix
Conveyor Line Speed:
- 20'/min (6.1 m/min) to 200'/min (61 m/min)
Message Length:
- Up to 40 characters of 16 dot font or two 80 character rows of 7 dot format
Operating Temperature Range:
- 40 degrees Fahrenheit to 120 degrees Fahrenheit
Electrical:
- System uses universal switching power supply. 100-240V at 50/60 Hz
Print Sensor:
- Internal sensors included; external sensor is optional
Ink System:
- Internally regulated ink system
- Factory set
- No adjustment necessary
Ink:
- 8 oz (0.23 liter) bladder pressurized, non-aerosol ink bottle
Mounting Bracketry:
- 15 and 9 in (38.9 and 22.8 cm) tubing with 1" (2.54 cm) outside diameter (OD)
- Optional hand levers can be installed for simple up/down and in/out adjustments
- Optional bracketry for special installations
- Long reach bracket kit available for special mounting situations
Shipping Weight: 11.45 lbs. (5.19 kg)
